Zhejiang Jiangshan Hengli Hluav Taws Xob Co., Ltd. Yog hais tias koj yuav mus rau cov lag luam wholesale ntev peb theem qhuav hom transformer hauv Suav teb, txais tos kom tau txais pricelist los ntawm peb lub hoobkas. Tag nrho cov khoom customized yog nrog cov khoom zoo thiab tus nqi qis.

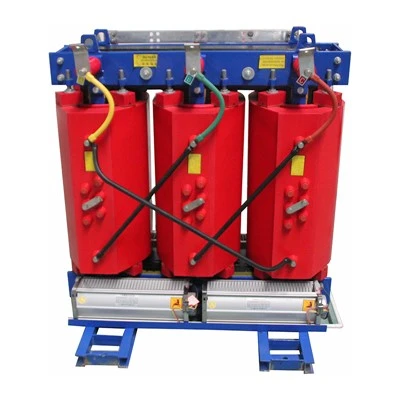

Peb muab ib chav tsev ntawm 1000kVA Peb Theem Qhuav Hom Transformer rau Africa hauv 2021.Qhov muaj peev xwm ntawm Peb Theem Qhuav Hom transformer yog 1000kVA nrog AN / AF txias, thawj qhov hluav taws xob yog 33kV nrog ± 2 * 2.5% tapping ntau yam (NLTC), theem nrab voltage yog lawv tsim 6.6kV.
Tsis muaj cov roj insulating sab hauv, Peb Theem Qhuav Hom Transformer no tshem tawm cov roj to, tawg thiab hluav taws kub. Nws tsis muaj suab nrov, plua plav- pov thawj, noo noo- tiv taus thiab yuav luag txij nkawm- dawb, zoo kawg nkaus haum rau kev teeb tsa sab hauv tsev, qhov siab - thaj chaw siab, qhov chaw muaj av noo thiab kev nyab xeeb- qhov xwm txheej tseem ceeb xws li cov chaw tsim khoom, khw muag khoom, cov chaw zov me nyuam, cov chaw kho mob, photovoltaic thiab cua zog fais fab chaw nres tsheb.
Technical Flexibility rau Complex Projects
Rau peb Phase Qhuav Hom Transformer, peb tuaj yeem muab rau koj:
Voltage ratios- Thawj theem ntawm 6 kV txog 36 kV; theem nrab ntawm 0.4 kV, 0.69 kV, lossis lwm theem faib
Vector pawg- Dyn11 rau kev sib xyaw ua ke, Yyn0 rau kev faib khoom hauv tsev, lossis pab pawg tshwj xeeb rau cov txheej txheem kev lag luam
Tapping- Tawm- Circuit Court kais ntawm ± 2 × 2.5% rau kev kho qhov hluav taws xob raws caij nyoog, lossis ntawm -load kais hloov pauv rau kev tswj tsis siv neeg
Kev hloov kho cua txias- Ib qho kev ntsuas hauv qab nrog AF tshaj qhov muaj peev xwm, lossis AF txuas ntxiv rau kev cog lus siab - zog ceev
Cov ntaub thaiv npog- IP20 rau chav tsev huv si, IP31 rau kev tiv thaiv plua plav yooj yim, IP54 rau sab nraum zoov lossis ntxuav- thaj chaw hauv qab
Qhov zoo
Hluav taws kub resistant / Tus kheej -extinguishing (F1)
Environmental class (E2) thiab climatic class (C2)
Los ntawm IP00-IP56 enclosure nrog AN, AF, ANAF lossis AFWF txias
Kev kho dawb
Ib puag ncig tus phooj ywg, ≥ 90% ntawm cov khoom siv rov ua dua tshiab
Roj-cov transformers puv muaj kev lav phib xaub ib puag ncig. Cov pa paug paug hauv av, xav tau kev kho kom raug nqi, thiab hauv qee qhov kev txiav txim siab ua rau qhov yuav tsum tau ceeb toom. Peb cam khwb cia resin Peb Theem Qhuav Hom Transformer units muaj tsis muaj roj, tsis muaj PCBs, thiab tsis muaj kev phom sij coolants. Thaum kawg ntawm lub neej, cov tooj liab thiab txhuas cov khoom siv rov ua dua tshiab, cov tub ntxhais hlau yog cov khoom siv qib - qib, thiab epoxy resin tuaj yeem ua tiav los ntawm cov qauv kev lag luam pov tseg. Ntxiv tam sim ntawd, qhov tsis muaj roj txhais tau tias tsis muaj hluav taws kub - pob khoom ntim, tsis muaj roj- kev soj ntsuam qib, thiab tsis muaj qhov nchuav - cov phiaj xwm teb - ua kom yooj yim rau koj qhov chaw ua raws li ib puag ncig los ntawm hnub ib.
Suab nrov yog lwm qhov ib puag ncig ib puag ncig feem ntau saib tsis tau. Lub transformer humming ntawm 65 dB nyob rau hauv ib lub tsev hauv qab daus tsim kev tsis txaus siab. Peb tus qauv tsim lub hom phiaj 55 dB lossis qis dua rau qhov ntsuas nruab nrab, thiab peb tuaj yeem hais qhia lub suab nrov ntxiv - txo kev ntsuas - nruj nreem clamping, vibration -dampening pads, thiab acoustic enclosures - rau qhov chaw rhiab heev.
Peb Cov Kev Pabcuam
Ua ntej-Kev Pabcuam Muag
Kev cob qhia kev xaiv transformer
24/7 technical kev sab laj
Fast customization tsim
Tom qab -Kev Pabcuam Muag
12-lub hlis warranty (extendable)
Kev them nyiaj yug installation & tu
Dedicated technical team teb
Kev pab cuam lub neej
FAQ
